In 2008, Krstic founded the Cymer Center for Control Systems and Dynamics, under joint funding by Cymer Corporation and General Atomics. The center has fostered collaborations with industry in controls research and placed numerous students at Cymer, GA, and other companies.





CHIP MANUFACTURING — EXTREME ULTRAVIOLET LIGHT FOR PHOTOLITHOGRAPHY



Krstic facilitated the transition of his extremum seeking technology to Cymer, Inc., enabling Cymer to stabilize extreme ultraviolet light sources, which revolutionized photolithography.  The reduction of chip feature size from 193 nm to 13 nm enabled up to 220-fold increase in transistor density  using the discrete-time ES algorithm in Krstic’s 2002 paper.[i]  Cymer hired Krstic’s PhD graduate Paul Frihauf and his three other trainees on extremum seeking (Riggs, Graham, Dunstan) who implemented Krstic’s algorithm on EUV (see their patent 8598552B1[ii]). Promptly upon this technological breakthrough, Cymer was acquired by ASML for $3.7B.  ES algorithms have made possible EUV sources used by Intel, IBM, Samsung, and TSMC.  EUV has grown to a $10 Billion per year industry, used in manufacturing of the world’s highest-density chips for electronics ranging from mobile phones to data centers and GPUs used for AI.









AIRCRAFT ARRESTMENT ON US NAVY CARRIERS

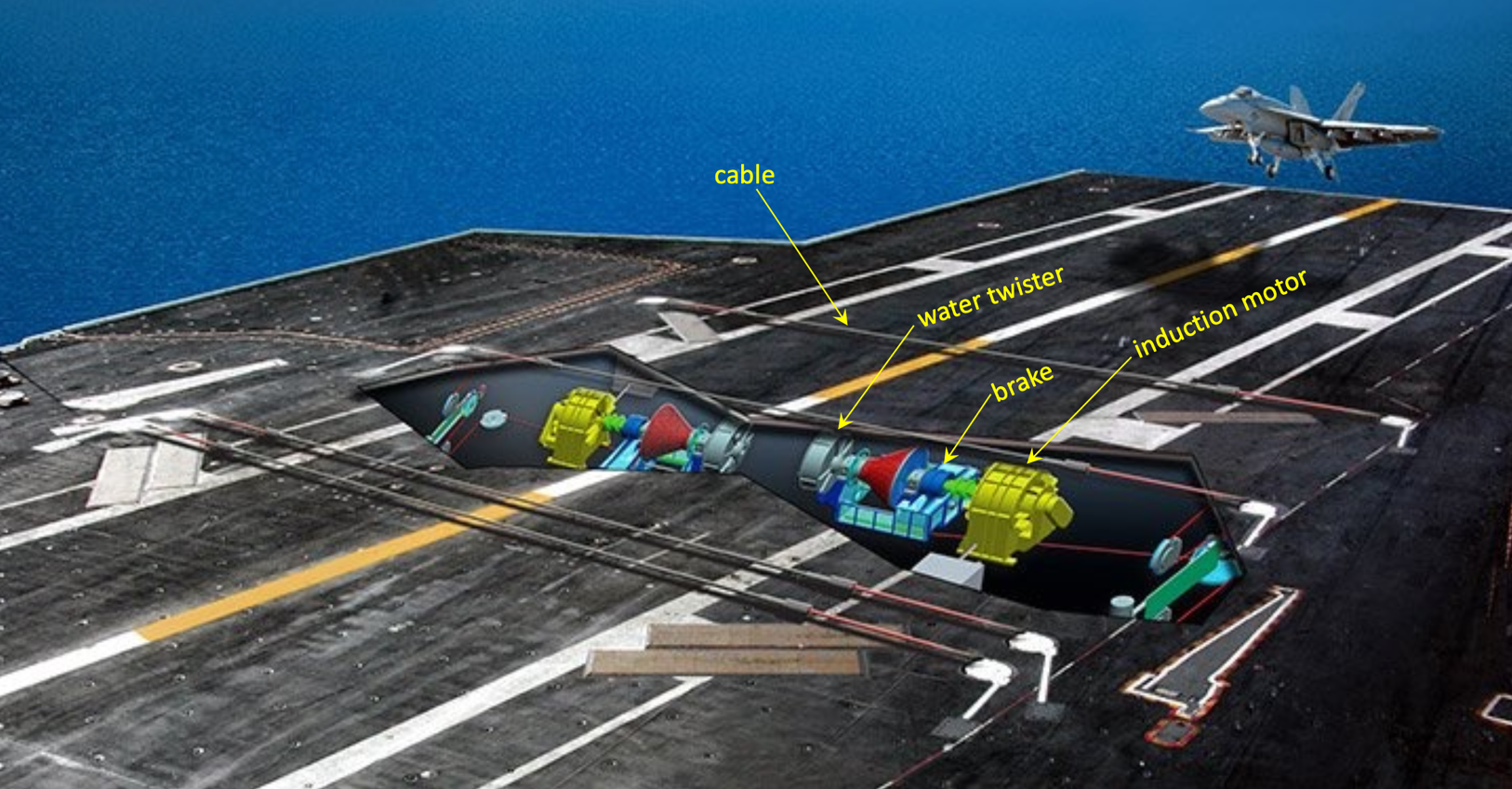

In 2014-2019, Krstic led a team of his four former PhDs and trainees employed at General Atomics (Prior, Ghods, Frihauf, Kinney), in his role as a consultant employed by GA, in the design of control algorithms and their performance analysis, for electromagnetic arresting gear for landing aircraft on carriers. These algorithms now perform all landings on the latest aircraft “supercarrier” USS Gerald R. Ford (CVN-78) and will be installed on all future Ford-class carriers, including USS John F. Kennedy (CVN-79) and USS Enterprise (CVN-80).  See the US Navy video showing landing of an F/A-18E/F Super Hornet, a Grumman C-2A Greyhound, and an F-14 Tomcat on USS Ford in January 2020, soon after successful control algorithm designs by the team of Krstic’s students at General Atomics.



A close-up of a jet engine Description automatically generated







MARS ROVER CURIOSITY ChemCam



In 2015 NASA replaced their underperforming auto-focus algorithm on the Mars Rover Curiosity’s ChemCam system by an extremum seeking algorithm whose development was supervised by Krstic in the M.S. thesis of his student Walter Barkley,[iii] employed by the Los Alamos National Laboratory. ChemCam fires a laser, focused by extremum seeking, and analyzes the composition of Martian rocks.



Mars rover’s ChemCam instrument gets sharper vision







CHARGED PARTICLE ACCELERATORS



Krstic and his team introduced extremum seeking for beam matching in charged particle accelerators in a 2007 article[iv] and for Klystron power supplies in a 2014 article.[v] Krstic’s PhD student Alexander Scheinker (Los Alamos National Laboratory) further developed and implemented extremum seeking algorithms for accelerators throughout the U.S. Department of Energy laboratory complex and elsewhere in the world:  at Los Alamos (1 kilometer LANSCE), [vi] [vii] [viii] [ix] [x]  Lawrence Berkeley Lab,[xi]  SLAC at Stanford,[xii] [xiii] [xiv]  Argonne Lab,  CERN,[xv]  Deutsches Elektronen-Synchrotron,[xvi]  etc.  Manual re-tuning of an accelerator, after annual maintenance or upgrade, which mistunes the system, takes up to two months. Re-tuning with extremum seeking takes minutes.









OTHER

















VIDEOS ON YouTube  OF TECHNOLOGIES ENABLED BY  KRSTIC



EUV at Intel

Jets landing on carrier

Mars Rover – ChemCam

1 km accelerator at Los Alamos

A video of a mars rover on a desert Description automatically generated

A video of a wooden structure Description automatically generated with medium confidence
